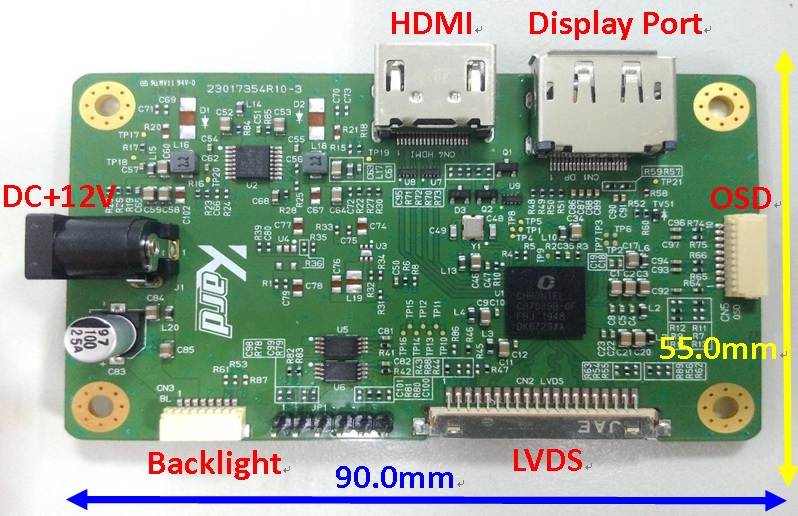

- LCD Bridge Board 、Controller Board (AD Board) - LCD Bridge Board 、Controller Board (AD Board)LCD Bridge board、Controller Board (AD Board) which act as an interface between the TFT LCD and PC systems, transfers the image created from the PC to the TFT LCD screen.
JDI’s RoHS Compliant Bridge Board、Controller Board (AD Board) works with industrial grade LCD panels with input connections of HDMI and DP (Display Port), which can be used for wide range of applications, industrial LCD display, Medical Display, In-vehicle display, Rail Transportation, measuring equipment, medical equipment, POS machine, railways display, Advertising & Information Digital Signage, and Kiosk.
| Product Name | FOR JDI's LCD Product | Dimensions (mm) | LCD Resolution | Number of Colors | Input Interface | Output Interface | Input Voltage | Input Current | Weight | Operating Temp | Storage Temp |
| ADB1428 | TX14D28 series - 5.7inch LCD | 55(W) x 90(H) x 14.5(D) | 640x480 | 262K Colors (6-bit RGB) | HDMI:19 pins; Display Port: 20 pins | LVDS; 20 pins | 12 V | 2A | 36g | 0~70 degree C | -20~70 degreeC |
| ADB18200 | TX18D200 series - 7.0inch LCD | 55(W) x 90(H) x 14.5(D) | 1920x1080 | 16.7M Colors (8-bits RGB) | HDMI:19 pins; Display Port: 20 pins | LVDS; 20 pins | 12 V | 2A | 36g | 0~70 degree C | -20~70 degreeC |
| ADB18204 | TX18D204 series - 7.0inch LCD | 55(W) x 90(H) x 14.5(D) | 1920x1080 | 16.7M Colors | HDMI:19 pins; Display Port: 20 pins | LVDS; 20 pins | 12 V | 2A | 36g | 0~70 degree C | -20~70 degreeC |
| ADB18211 | TX18D211 series - 7.0inch LCD | 55(W) x 90(H) x 14.5(D) | 800x480 | 262K Colors (6-bits RGB) | HDMI:19 pins; Display Port: 20 pins | LVDS; 20 pins | 12 V | 2A | 36g | 0~70 degree C | -20~70 degreeC |
| ADB18212 | TX18D212 series - 7.0inch LCD | 55(W) x 90(H) x 14.5(D) | 1280x768 | 16.7M Colors (8-bits RGB) | HDMI:19 pins; Display Port: 20 pins | LVDS; 20 pins | 12 V | 2A | 36g | 0~70 degree C | -20~70 degreeC |
| ADB20207 | TX20D207 series - 8.0inch LCD | 55(W) x 90(H) x 14.5(D) | 1280x768 | 16.7M Colors (8-bits RGB) | HDMI:19 pins; Display Port: 20 pins | LVDS; 20 pins | 12 V | 2A | 36g | 0~70 degree C | -20~70 degreeC |
| ADB20208 | TX20D208 series - 8.0inch LCD | 55(W) x 90(H) x 14.5(D) | 800x480 | 16.7M Colors (8-bits RGB) | HDMI:19 pins; Display Port: 20 pins | LVDS; 20 pins | 12 V | 2A | 36g | 0~70 degree C | -20~70 degreeC |
| ADB23202 | TX23D202 series - 9.0inch LCD | 55(W) x 90(H) x 14.5(D) | 800x480 | 16.7M Colors (6-bits RGB+FRC) | HDMI:19 pins; Display Port: 20 pins | LVDS; 20 pins | 12 V | 2A | 36g | 0~70 degree C | -20~70 degreeC |
| ADB23203 | TX23D203 series - 9.0inch LCD | 55(W) x 90(H) x 14.5(D) | 800x480 | 16.7M Colors (6-bits RGB+FRC) | HDMI:19 pins; Display Port: 20 pins | LVDS; 20 pins | 12 V | 2A | 36g | 0~70 degree C | -20~70 degreeC |
| ADB26207 | TX26D207 series - 10.1inch LCD | 55(W) x 90(H) x 14.5(D) | 1280x800 | 16.7M Colors (8-bits RGB) | HDMI:19 pins; Display Port: 20 pins | LVDS; 20 pins | 12 V | 2A | 36g | 0~70 degree C | -20~70 degreeC |
| ADB26200 | TX26D200 series - 10.4inch LCD | 55(W) x 90(H) x 14.5(D) | 800x600 | 16.7M Colors (8-bits RGB) | HDMI:19 pins; Display Port: 20 pins | LVDS; 20 pins | 12 V | 2A | 36g | 0~70 degree C | -20~70 degreeC |
| ADB31200 | TX31D2D00 series - 12.3inch LCD | 55(W) x 90(H) x 14.5(D) | 1280x480 | 16.7M Colors (8-bits RGB) | HDMI:19 pins; Display Port: 20 pins | LVDS; 20 pins | 12 V | 2A | 36g | 0~70 degree C | -20~70 degreeC |
